Tents and hangars

As a result of constant research and monitoring of new technologies, we are proud to present ranges of equipment and certified solutions, which meet and exceed the greatest requirements of our customers.



Tents and hangars



TM RAGE

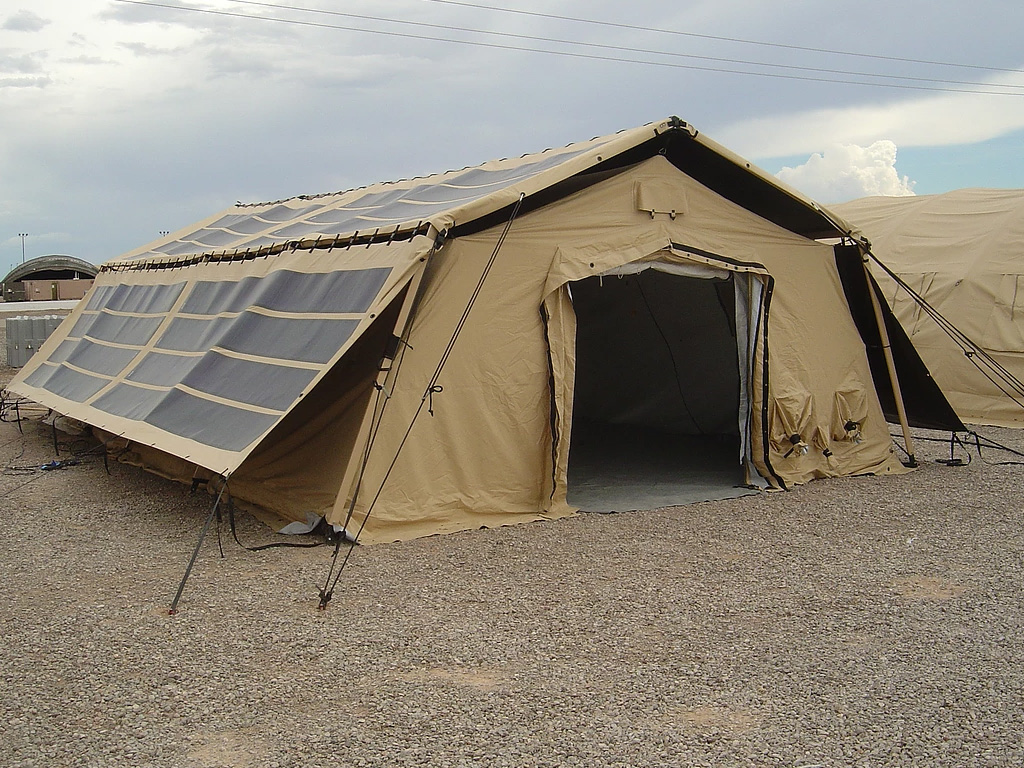

The TM tent is composed of an aluminum structure and a suspended screen. Assembly takes less than 3 min. for the range of tents TM18, TM36 and TM54 with 2, 3 and 4 people, respectively. No tool or power source is required for assembly.



It is possible to set up the TM tents with winds up to 50km / h. Once assembled and staked on the ground, the tents withstand wind blowing at a speed of over 110km / h and withstand a snow load of more than 50kg / m2 on the roof. All tent openings were designed to prevent water from entering in the most adverse weather conditions.



TMS RAGE





TMS tents share the basic concept of TM tents and equip them with a larger interior useful space, through a structure design with straight walls. The TMS tent has the same quick and easy setup principle as the tents in the TM range.

TMS tents can withstand temperatures between -30ºC and + 70ºC.







TMS tents have the main colors available: white, NATO green and sand color. With 1.80m and 2.60m wide doors, 80x60cm windows in crystallized PVC screen, among other possible configurations.

They are available in three different sizes:

TMS18: 18 square meters;

TMS36: 36 square meters;

TMS54: 54 square meters.

TMV RAGE



TMV tents were specifically designed for the implantation of large fields of long duration, in adverse climatic environments. The project is based on an aluminum or steel gantry structure resistant to extreme forces (snow loads of 110kg per square meter, wind load of 190km / h.)



It is a combination of a textile structure made of three layers for optimal thermal performance and an unprecedented level of comfort. TMV tents are available with a width of 6m or 10m and a height of 2.5m or 3.5m (other dimensions on request).

TL / TXL RAGE

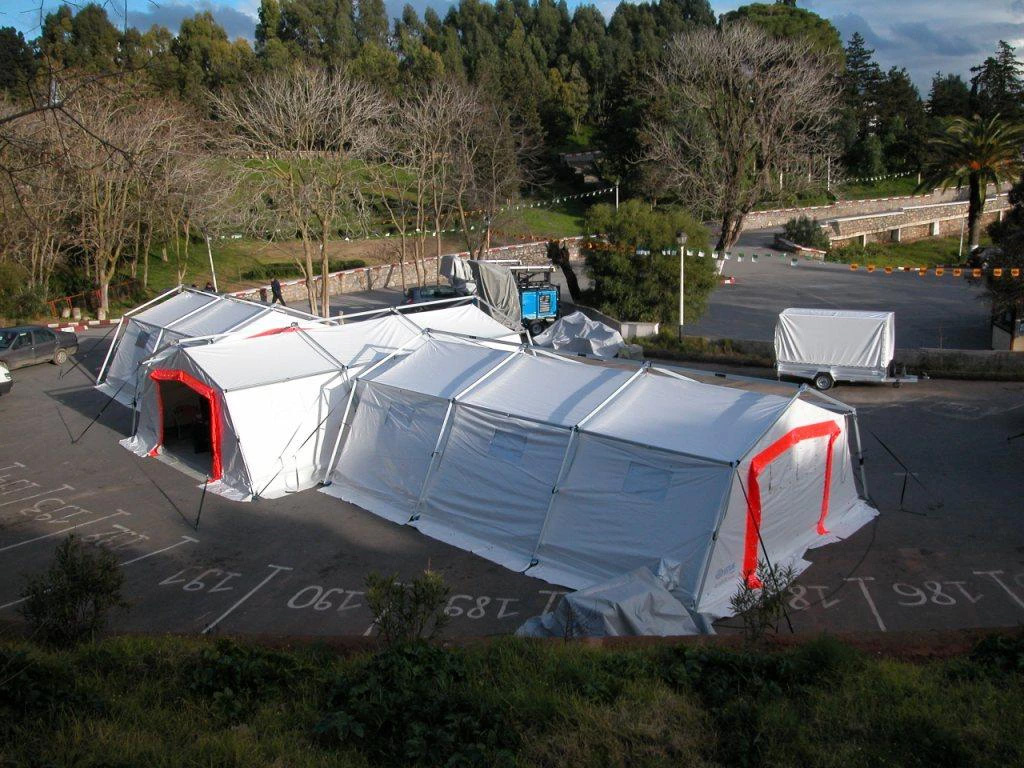

TL and TXL tents are made up of an aluminum structure and a suspended canvas. This screen is suspended inside the structure thanks to an effective system of straps and ropes.

The TL (7.2m wide x 4.2m high) and TXL (9m wide x 5.2m high) tents are composed of several 5m long bodies, so they can be adapted to the length required by the customer.









Can be joined to tents in the TM range. The various adapted joining systems make it possible to connect these tents to vehicles and containers of varying dimensions.

It is possible to set up the TL and TXL tents with winds up to 50km / h. Once assembled and staked on the ground, they withstand winds exceeding 110km / h and withstand a snow load of more than 50kg / m2. All the openings of the tents were designed to prevent water from entering in the most adverse weather conditions.





SM RAGE




The SM tent is composed of an aluminum structure and a suspended screen. Assembly is carried out in less than 2 minutes by 2 people for any tent model and benefits from an innovative system for quick disassembly of the structure. No tool or power source is required for assembly / disassembly.

The various adapted connection systems make it possible to connect these tents to vehicles and containers of varying dimensions.

It is possible to set up SM tents with winds up to 50km / h. Once assembled and staked on the ground, they withstand winds exceeding 110km / h and withstand a snow load of more than 50kg / m2. All the openings of the tents were designed to prevent water from entering in the most adverse weather conditions.

HANGARS



HAS25: The HAS dry air hangar consists of a galvanized tubular stainless steel structure, a polyester screen with PVC induced on both sides and a ballast system. The front part opens completely with a shell-shaped door driven by an electric or manual winch. The other side is a closed vertical piece that has an access door located above the ballast.

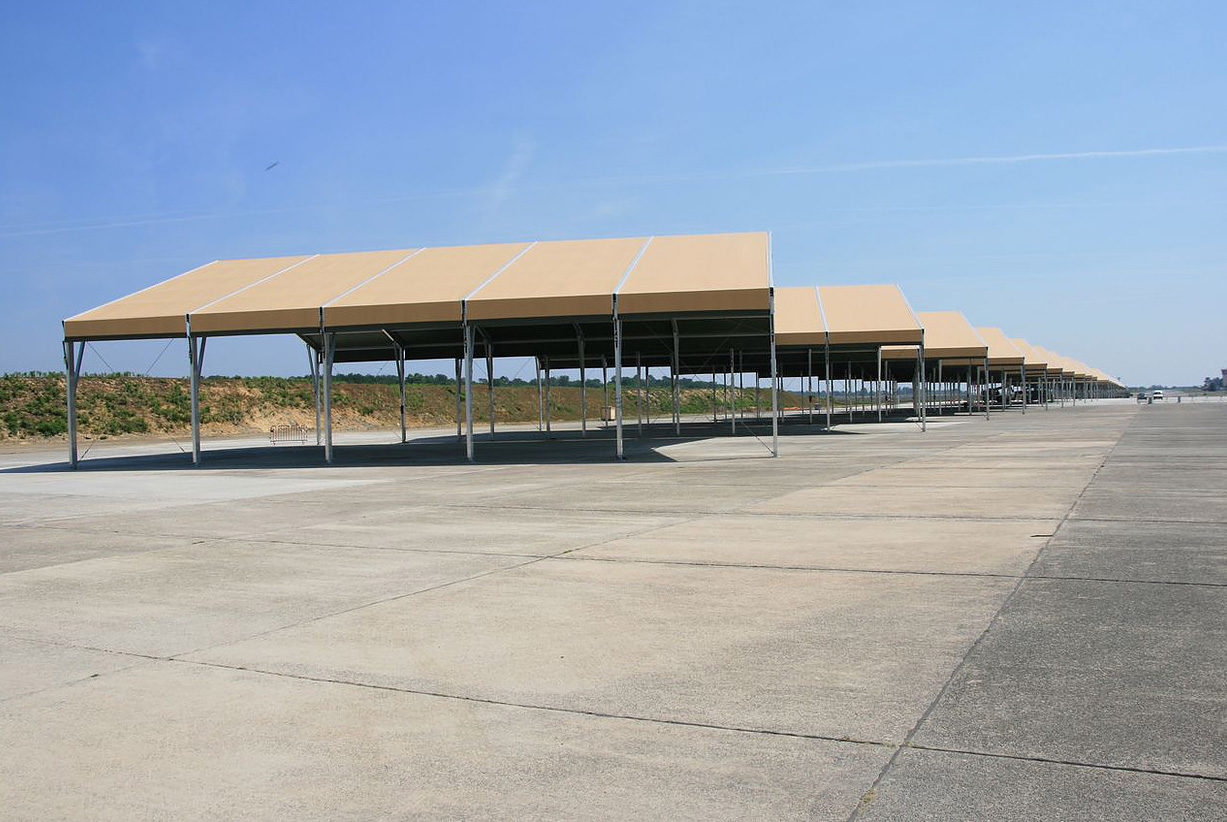

APS20: The sunshade structure is a light aluminum structure, covered by a polyester fabric with PVC induced on both sides. The aluminum structure is modular, consisting of 5m pieces. The sunshade screen covers the structure on the ceiling and lowers 50 cm on the sides. The sunshade screen is attached to the structure's joists thanks to a system of grooves and hooks and the tension is applied through a gear (tensioner).

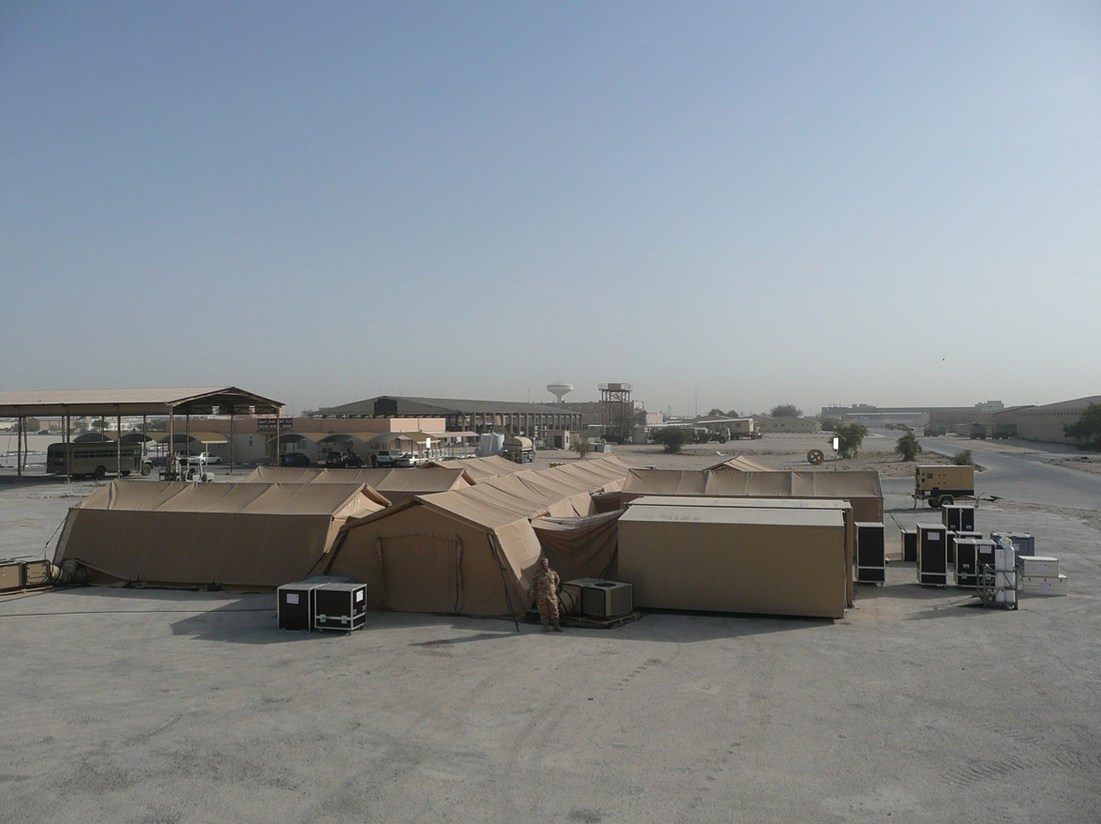

CAMPS





Whatever the level of protection and comfort required, UTILIS offers a wide range of shelters adapted for the accommodation of soldiers, the civilian population or for the storage of materials. UTILIS tents are equipped with high-tech materials in terms of insulation and resistance to the most diverse weather conditions. The tents can be equipped with rigid doors in order to obtain a more robust camp and ensure the durability of the equipment.



UTILIS studies the project with its client in order to provide tailor-made solutions. According to the client's needs, UTILIS proposes a set of logistical options such as air conditioning, heating, energy management, lighting, etc ... as well as the installation of the camp, training and after-sales service.



HOSPITALS







UTILIS has always provided complete and turnkey solutions for field hospitals, advanced medical posts and other hospital modules, within the civil and military markets.

With the help of a specialized team, Utilis studies the project with the client, with the aim of providing him with all the necessary advice, both medical and logistical.







Emergency and general hospital modules are designed and supplied for mobile and durable applications. We also offer a range of treatment modules that are varied and adapted to the needs of all missions.

Competent teams accompany you in the installation and train your staff by organizing catastrophe scenarios similar to real catastrophes.

INFLATABLE TENT





Easy to assemble tents within minutes after connecting to the insufflator.

Inflatable with compressed air or electric insufflator

Quick-connect device for connecting the compressed air supply.

Safety discharge valve.





Traditional inflatable structure glued or through high frequency welding.

Tent entrance with zips, reversible screen zips on the floor.

Tightening strips with spy cords on the arches of the support structure to ensure stability in all weather conditions.

Ventilation network above the entrance to provide a natural renewal of air.
